Customizable Liquid Cold Plate Thermal Management in EV and ESS Applications

Adedi:	5 adet
fiyat:	Pazarlık edilebilir
Standart Paketleme:	İhracat için özel kontrplak kutu
Teslim süresi:	35 gün
Ödeme yöntemi:	T/T
Tedarik Kapasitesi:	3000 adet/gün

Detay Bilgisi

Ürün Açıklaması

Detay Bilgisi

Menşe yeri

Çin, Suquan şehri

Marka adı

Trumony

Sertifika

ISO9001,IATF

Model numarası

1P104S

Üretim Süreci:

Lehimleme, Ekstrüzyon, Delme, CNC,

Alaşım:

3003,6061

Boyut:

Müşterilerin ihtiyacına/tasarımına göre

Başvuru:

Lityum pil paketi

Garanti:

1 Yıl

Vurgulamak:

customizable liquid cold plate

EV thermal management cold plate

ESS liquid cooling plate

Ürün Açıklaması

Products introduction:

Our liquid cold plate is a professional thermal management solution designed specifically for energy storage systems (ESS). It provides efficient and stable cooling for large-capacity battery energy storage systems, maintaining ideal operating temperatures, reducing hotspots, and improving battery safety, cycle life, and overall system stability. Constructed with high-quality aluminum alloy and advanced vacuum brazing technology, the product features high pressure resistance, excellent leakproofness, and strong corrosion resistance for long-term reliable operation. With customizable sizes, flow channels, and port designs, it can be flexibly integrated into commercial, industrial, and utility-scale energy storage battery packs, offering safe, efficient, and cost-effective thermal control for modern energy storage applications.

Product Parameter

Category	Details
Material Selection	Base plate: AL3003MOD (commonly used) Flow channel plate: AL3003MOD (commonly used) Insulation layer: Powder coating or film lamination (commonly used)
Key Processes	1. Stamping forming 2. Degreasing and spraying 3. Brazing 4. Helium leak test 5. Powder coating or film lamination
Structural Design	1. Flow channel plate: 1mm (typical); Base plate: 1mm or 1.2mm (typical); Insulation layer thickness: 0.1~0.3mm 2. Total cold plate height: 5.5~6.5mm; Flow channel height: 3~4mm (typical) 3. Seal width: ≥7mm
Performance	1. High structural strength and pressure resistance 2. Excellent heat dissipation efficiency and temperature uniformity 3. Superior corrosion resistance 4. High space utilization rate
Cost	Typically RMB 27~35/kg, with relatively high tooling cost
Weight	Significant lightweight advantage: 1+1mm cold plate weighs approx. 5.5kg/m² (calculated by area)
Lead Time	High design flexibility and short prototyping cycle
Maturity	Most widely adopted process, with >90% market share

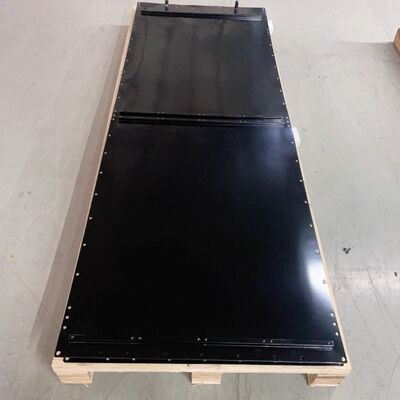

Customizable Liquid Cold Plate Thermal Management in EV and ESS Applications 0

APPLICATION

Our liquid cold plate is specifically designed for EV power battery packs, widely applied in passenger electric vehicles (EVs), commercial electric vehicles (e.g., electric buses, trucks), hybrid electric vehicles (HEVs), and high-performance power battery systems. It provides reliable thermal management support for automotive OEMs, Tier 1 suppliers, and battery pack manufacturers, ensuring stable battery operation in various electric mobility scenarios.

FAQ:

Q: Are you a trading company or manufacturer?

A:Yes,we are a factory with more than 18 years history in this industry.

Q: What is your terms of payment ?

A: Normally 100% T/T In advance,But this is something that can be negotiated.

Q: How long does it take for samples and mass production?

A: Usually it will take 35 days for new moulds and samples ,
after confirmation, 30 days for mass production.

Q:OEM/ODM available?

A:Yes,we can!

Q:Could you provide sample?

A:Yes, We are honored to offer you samples for quality check.

Q:Is sample order accepted?

A:Yes,we accept sample order and we can provide design service!
