Reliable Brazed Aluminum Liquid Cold Plate for EV & HEV Power Battery Systems

Ürünler

Alüminyum Hava Pil

Bize Ulaşın

sales4@trumony.com

+86 18018119117

Hemen İletişime Geçin

Reliable Brazed Aluminum Liquid Cold Plate for EV & HEV Power Battery Systems

Adedi:	5 adet
fiyat:	Pazarlık edilebilir
Standart Paketleme:	İhracat için özel kontrplak kutu
Teslim süresi:	35 gün
Ödeme yöntemi:	T/T
Tedarik Kapasitesi:	3000 adet/gün

Detay Bilgisi

Ürün Açıklaması

Detay Bilgisi

Menşe yeri

Çin

Marka adı

Trumony

Sertifika

ISO9001,IATF

Model numarası

Ürün adı:

sıvı soğuk levha

Malzeme:

3003

Boyut:

Müşterilerin ihtiyacına/tasarımına göre

Başvuru:

EV/ESS

İlerlemek:

Lehimleme, Delme

Nakliye oranı:

Jiangsu, Suqian şehri

Garanti:

1 Yıl

Teslimat:

4-5 hafta

Vurgulamak:

Brazed aluminum liquid cold plate

EV power battery cold plate

HEV battery cooling plate

Ürün Açıklaması

Product name:Reliable Brazed Aluminum Liquid Cold Plate for EV & HEV Power Battery Systems

Products introduction:

Focused on EV power battery packs, our liquid cold plate delivers exceptional thermal management to keep your batteries

operating at peak performance. Engineered with high-conductivity aluminum and advanced brazing technology, it ensures fast,

uniform cooling to eliminate hotspots, protect battery life, and boost charging efficiency. Lightweight, compact, and rigorously

leak-tested, it integrates easily into any battery pack layout, while customizable designs adapt to your unique requirements.

Durable, cost-effective, and built for automotive-grade reliability, it’s the perfect solution to elevate your EV battery performance

and safety.

Product Parameter

Category	Details
Material Selection	Base plate: AL3003MOD (commonly used) Flow channel plate: AL3003MOD (commonly used) Insulation layer: Powder coating or film lamination (commonly used)
Key Processes	1. Stamping forming 2. Degreasing and spraying 3. Brazing 4. Helium leak test 5. Powder coating or film lamination
Structural Design	1. Flow channel plate: 1mm (typical); Base plate: 1mm or 1.2mm (typical); Insulation layer thickness: 0.1~0.3mm 2. Total cold plate height: 5.5~6.5mm; Flow channel height: 3~4mm (typical) 3. Seal width: ≥7mm
Performance	1. High structural strength and pressure resistance 2. Excellent heat dissipation efficiency and temperature uniformity 3. Superior corrosion resistance 4. High space utilization rate
Cost	Typically RMB 27~35/kg, with relatively high tooling cost
Weight	Significant lightweight advantage: 1+1mm cold plate weighs approx. 5.5kg/m² (calculated by area)
Lead Time	High design flexibility and short prototyping cycle
Maturity	Most widely adopted process, with >90% market share

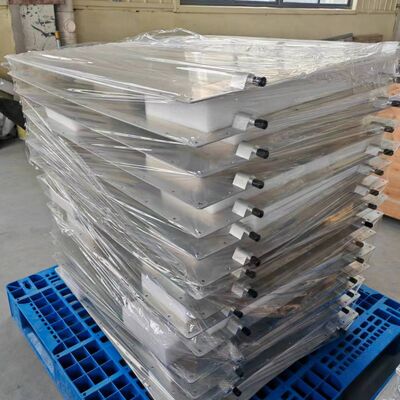

Reliable Brazed Aluminum Liquid Cold Plate for EV & HEV Power Battery Systems 0

APPLICATION

Our liquid cold plate is specifically designed for EV power battery packs, widely applied in passenger electric vehicles (EVs), commercial electric vehicles (e.g., electric buses, trucks), hybrid electric vehicles (HEVs), and high-performance power battery systems. It provides reliable thermal management support for automotive OEMs, Tier 1 suppliers, and battery pack manufacturers, ensuring stable battery operation in various electric mobility scenarios.

Advantage

Excellent thermal management performance that effectively stabilizes battery temperature, reduces hotspots, and greatly extends the service life of energy storage batteries.
High-strength vacuum brazed structure with 100% helium leak testing, ensuring high pressure resistance and long-term safe operation.
Made of lightweight aluminum alloy with strong corrosion resistance, suitable for long-term outdoor and industrial energy storage environments.
Flexible customization for various sizes, flow channels and connectors to match different energy storage battery modules.
Stable production process, reliable quality and cost-effective solution for large-scale energy storage projects.
Good compatibility with liquid cooling systems, enabling high-efficiency heat dissipation and improving overall energy storage system performance.

FAQ:

Q: Are you a trading company or manufacturer?

A:Yes,we are a factory with more than 18 years history in this industry.

Q: What is your terms of payment ?

A: Normally 100% T/T In advance,But this is something that can be negotiated.

Q: How long does it take for samples and mass production?

A: Usually it will take 35 days for new moulds and samples ,
after confirmation, 30 days for mass production.

Q:OEM/ODM available?

A:Yes,we can!

Q:Could you provide sample?

A:Yes, We are honored to offer you samples for quality check.

Q:Is sample order accepted?

A:Yes,we accept sample order and we can provide design service!
