China Factory Customizable Aluminum Liquid Cold Plate For EV Battery Pack

Adedi:	500
fiyat:	99
Standart Paketleme:	AHŞAP KUTU
Teslim süresi:	5-6 hafta
Ödeme yöntemi:	T/T
Tedarik Kapasitesi:	3000 adet/gün

Detay Bilgisi

Ürün Açıklaması

Detay Bilgisi

Menşe yeri

Suqian şehri

Marka adı

Trumony

Sertifika

ISO9001

Model numarası

1P52S

Malzeme:

3003 Alüminyum

Yüzey İşlem:

Toz boya, Eloksal

hücreler:

280ah hücre

Modül:

1P52/1P48S Pil takımı

Basınç düşüşü:

15 kpa

Şarj ve deşarj oranı:

Vurgulamak:

customizable aluminum liquid cold plate

EV battery pack cooling plate

liquid cold plate for battery

Ürün Açıklaması

Product Overview

Tailored for high-performance electric vehicle (EV) battery packs, our stamped and brazed liquid cold plates are engineered to deliver reliable, high-efficiency thermal management—ensuring optimal operating temperatures, uniform cooling, and long-term safety for lithium-ion batteries.

Technical Specifications:

Category	Details
Material Selection	Base plate: AL3003MOD (commonly used) Flow channel plate: AL3003MOD (commonly used) Insulation layer: Powder coating or film lamination (commonly used)
Key Processes	1. Stamping forming 2. Degreasing and spraying 3. Brazing 4. Helium leak test 5. Powder coating or film lamination
Structural Design	1. Flow channel plate: 1mm (typical); Base plate: 1mm or 1.2mm (typical); Insulation layer thickness: 0.1~0.3mm 2. Total cold plate height: 5.5~6.5mm; Flow channel height: 3~4mm (typical) 3. Seal width: ≥7mm
Performance	1. High structural strength and pressure resistance 2. Excellent heat dissipation efficiency and temperature uniformity 3. Superior corrosion resistance 4. High space utilization rate
Cost	Typically RMB 27~35/kg, with relatively high tooling cost
Weight	Significant lightweight advantage: 1+1mm cold plate weighs approx. 5.5kg/m² (calculated by area)
Lead Time	High design flexibility and short prototyping cycle
Maturity	Most widely adopted process, with >90% market share

Key Functions

Efficient heat dissipation at high-rate charging and heavy discharge
Preheating batteries in low-temperature environments
Improve temperature uniformity and reduce hotspots
Enhance battery safety and extend service life
Stabilize performance in continuous high-power operation

Why Choose Us

Professional liquid-cooled design for excellent thermal management and long battery life

High-strength aluminum alloy structure with high rigidity, light weight and strong durability

Customized for 1P52S energy storage battery packs, ensuring perfect fit and stable performance

Strict quality control and reliable production process

Competitive pricing and on-time delivery

Professional technical support and after-sales service

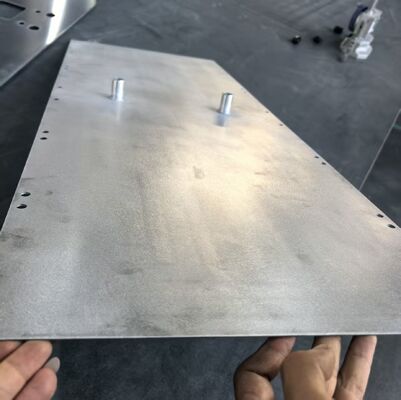

China Factory Customizable Aluminum Liquid Cold Plate For EV Battery Pack 1

FAQ

Q1:Is this enclosure suitable for 1P52S Module energy storage systems only?

A1:Yes, this is custom-made for the 1P52 module. Of course, the hole positions, crossbeams, brackets, and dimensions can all be adjusted.

Q2:What else can we offer?

A2:The box body and related products such as top cover ,end plate and pipelines are available.

Q3:MOQ

A3In fact, there is no (MOQ). Customized samples can also be provided.

Q4:What technical capabilities do we have?

A4:Full-process customized design,Cross-component design collaboration,Desin optimization & simulation

Q5:General delivery time

A5:The sample stage: 40 -45 days.Mass production stage: 35 days
